CNC Turning
Our CNC turning facilities have advanced in technology to the point that our latest machines can no longer be considered CNC Lathes. Today our Integrex machining centres offer the ultimate in universal machining and multi-tasking. Turning, milling, multi-axis contouring, surface machining and more can all be achieved in one setting. This means that from an automatic bar feed it is possible to output a completely finished workpiece realising substantial reductions of in-process time and handling.
Plant List
2 x Mazak Intergrex 200 III
Control: Mazatrol 640 MT Pro
Max. turning diameter: 540 mm
Max. turning length: 1000 mm
X-axis: 580 mm
Y-axis: 160 mm
Z-axis: 1.045 mm
B-axis: 225°
C-axis: 360°
Mazak Intergex 200 Y
Control: Mazatrol 640 MT
Max. turning diameter: 540 mm
Max. turning length: 1000 mm
X-axis: 530 mm
Y-axis: 70 mm
Z-axis: 1064 mm
Mazak Quick Turn 10
Control: Mazatrol T Plus
Max. turning diameter: 210 mm
Max. turning length: 284 mm
X-axis: 95 mm
Z-axis: 289 mm

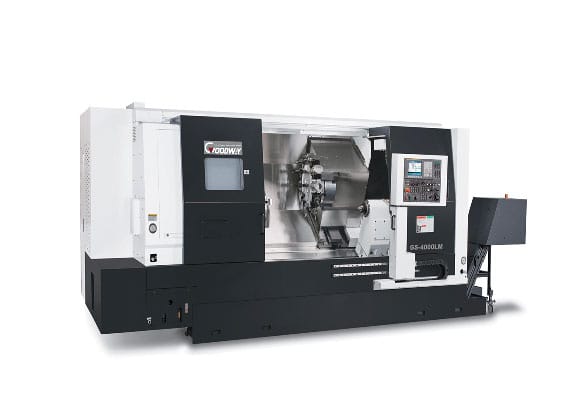

Goodway GSM4000LM
Control: Fanuc 0i-TF Plus
Max. turning diameter 620 mm
Max. turning length 1569 mm
X-axis: 350 mm
Z-axis: 1600 mm
C-axis: 360°
DMG CTX510 Ecoline
Control: Siemens 840
Max. turning diameter 420 mm
Max. turning length 1041 mm
X-axis: 300 mm
Y-Axis: 120 mm
Z-axis: 1050 mm
C-axis: 360°
